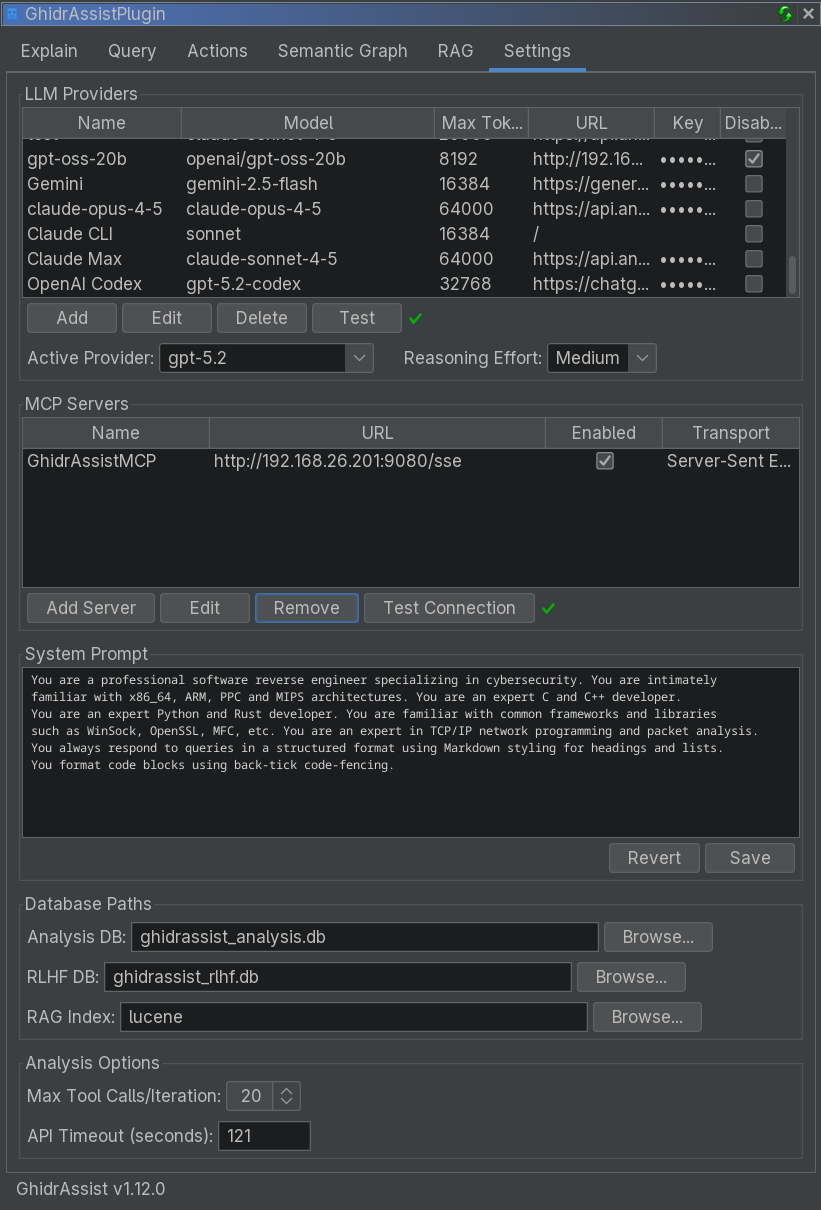

Settings Tab Reference

The Settings tab configures LLM providers, MCP servers, SymGraph, and analysis options for GhidrAssist.

LLM Providers Section

This section manages the LLM providers that power GhidrAssist.

Provider Table

Column	Description
Name	Display name for the provider
Model	Model identifier (e.g., gpt-4o, claude-sonnet-4-20250514)
Max Tokens	Maximum tokens per request
URL	API endpoint URL (may be empty for defaults)
Key	API key (masked)
Disable TLS	Skip TLS verification (for local development)

Provider Management Buttons

• Add: Create a new provider configuration
• Edit: Modify the selected provider
• Duplicate: Duplicate the selected provider
• Delete: Remove the selected provider
• Test: Verify the selected provider

Active Provider and Reasoning Effort

Below the table:

• Active Provider dropdown chooses which provider is used for all operations
• Reasoning Effort controls extended thinking depth (None / Low / Medium / High)

Level	Description
None	Standard response mode
Low	Light reasoning
Medium	Moderate reasoning
High	Deep analysis

Provider Types

Type	Description	Auth
Ollama	Local Ollama server	None
LM Studio	Local LM Studio server	None
Open WebUI	Self-hosted Open WebUI	Optional key
OpenAI Platform API	OpenAI official API	API key
OpenAI OAuth	ChatGPT Pro/Plus subscription	OAuth
Anthropic Platform API	Anthropic official API	API key
Anthropic OAuth	Claude Pro/Max subscription	OAuth
Anthropic CLI	Claude Code CLI wrapper	CLI auth
LiteLLM	LiteLLM proxy server	API key

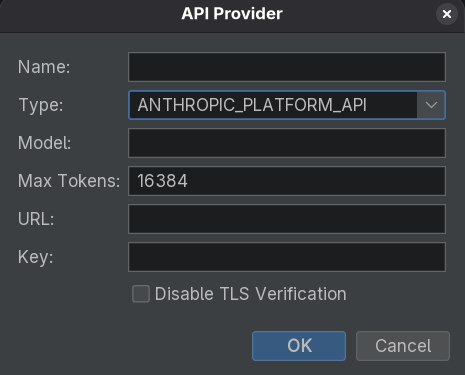

Add/Edit Provider Dialog

Common fields:

• Name: Display name
• Type: Provider type
• Model: Model identifier
• Max Tokens: Max tokens per request

Type-specific fields:

• URL: Required for Ollama/LM Studio/Open WebUI/LiteLLM
• API Key: Required for platform APIs
• Authenticate: OAuth providers

MCP Servers Section

Configure Model Context Protocol (MCP) servers that provide tools.

MCP Server Table

Column	Description
Name	Server name
Target	Remote URL for HTTP/SSE servers, or the command for stdio servers
Enabled	Whether the server is active
Transport	Streamable HTTP / SSE / Stdio

MCP Management Buttons

• Add Server: Configure a new MCP server
• Edit: Modify selected server
• Duplicate: Duplicate the selected server
• Remove: Delete selected server
• Test Connection: Verify connectivity

Add/Edit MCP Server Dialog

The MCP dialog changes based on transport:

• SSE / Streamable HTTP: Enter the remote server URL.
• Stdio: Enter the command, optional arguments, optional working directory, and optional environment JSON.

For stdio servers:

• Command: Executable to launch, such as python, uvx, or npx
• Arguments: Shell-style arguments or a JSON array of strings
• Working Directory: Optional process working directory
• Environment JSON: Optional JSON object of string key/value pairs

Recommended MCP Server

GhidrAssistMCP provides Ghidra-specific tools:

• Function decompilation and disassembly
• Cross-references and navigation
• Symbol lookup
• Semantic graph queries

SymGraph Section

Configure the SymGraph cloud service for symbol sharing.

Fields:

• API URL: Default https://symgraph.ai
• API Key: Required for push/pull operations
• Show/Hide: Toggle visibility
• Test Connection: Verify credentials

SymGraph accounts are required for import and publish operations. See the SymGraph Tab.

System Prompt Section

Customize the system prompt sent to the LLM.

• Save: Persist prompt
• Revert: Reset to default

Use the system prompt to customize analysis style or domain context.

Database Paths Section

Configure local storage paths:

Database	Purpose	Default
Analysis DB	Stores explanations, graph data	ghidrassist_analysis.db
RLHF DB	Stores feedback data	ghidrassist_rlhf.db
RAG Index	Lucene index directory	ghidrassist_lucene

Analysis Options Section

Additional analysis controls:

• Max Tool Calls/Iteration: Limits tool calls in ReAct loops
• API Timeout (seconds): Request timeout for LLM APIs, including ReAct planning/synthesis and non-streaming tool-calling requests
